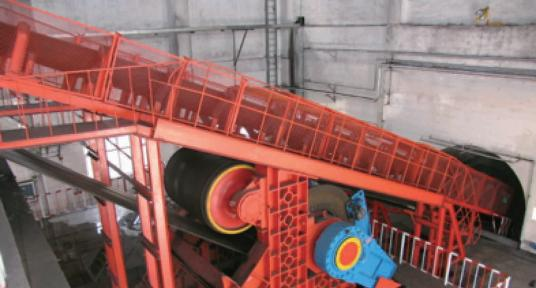

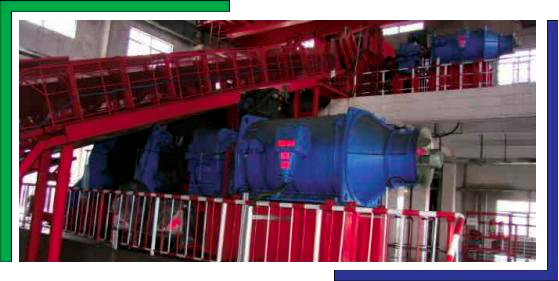

在线支付矿用固定带式输送机作为井下水平运输或倾斜提升物料的专用工具，已广泛应用于煤炭开采当中，目前是煤矿使用最多的一种带式输送机机型。其优点主要体现在长距离输送、大运量输送、大倾角输送等。矿用带式输送机的显著优点有大运量、长距离以及连续输送、运行可靠、集中控制等，是目前高产高效矿井的关键设备。采用动态分析、智能化控制技术等前沿理论。长距离、大运量、大倾角带式输送机的使用，可以较大幅度地减小采区运输巷道工程量，降低基建费用和缩短施工周期，是一种具有较好发展前景的带式输送机。我公司生产的最大倾角为上运31°、下运-25°,单机功率1600KW,总装机功率4800KW。带宽B800~1800。
矿用固定大倾角带式输送机选型 | ||||||||||
带宽(mm) | 800,1000、1200、1400、1600、1800mm | |||||||||
带速m/s | 1.25、1.6、2,2.5、3.15、3.5,4、4.5、5、5.6、6.73m/s | |||||||||
运输量t/h | 4500 | |||||||||
运输距离 | 小于4000米 | |||||||||
倾角 | -25°-31 | |||||||||
功率 | 单个电机功率可达37kW-2240KW | |||||||||
矿用固定大倾角带式输送机典型产品 | ||||||||||
产品型号 | 运量t/h | 运距m | 带宽mm | 带速m/s | 倾 角 ° | 电机功率kw | ||||
DTC80/10/185 | 100 | 425 | 800 | 1.25 | 36 | 185 | ||||
DTC80/30/2x250 | 300 | 765 | 800 | 2.5 | 36 | 2x250 | ||||
DTL100/21/2x280 | 210 | 1250 | 1000 | 2.5 | 21-16 | 2x280 | ||||
矿用固定大倾角带式输送机典型产品 | ||||||||||
产品型号 | 运量t/h | 运 F m | 带宽mm | 带速m/s | 倾角 | 电机功率kw | ||||
DTC100/10/2x550 | 100 | 1115 | 1000 | 2 | 20 | 2x500 | ||||
DTC100/10/2x450 | 280 | 1400 | 1000 | 3.15 | 23-15 | 2x450 | ||||
DTL100/80/2x560 | 800 | 743 | 1000 | 3.5 | 24.5-3.9 | 2x560 | ||||
DTL120/130/2x400 | 1300 | 400 | 1200 | 3.15 | 17-24-28 | 2x400 | ||||
DTC120/50/3x500 | 500 | 1500 | 1200 | 3.5 | 25 | 3x500 | ||||
DTC120/46/2x710 | 460 | 1450 | 1200 | 3.15 | 23-16 | 2x710 | ||||
DTC120/60/2x800 | 600 | 1109 | 1200 | 3.5 | 24-15 | 2x800 | ||||
DTC120/60/2x900 | 600 | 1252 | 1200 | 3.5 | 25-15 | 2x900 | ||||
DTC120/130/3x1000 | 1300 | 1121 | 1200 | 4.3 | 22 | 3x1000 | ||||
DTC120/120/2x1400 | 1200 | 720 | 1200 | 4 | 23 | 2x1400 | ||||
DTL140/186/3x800 | 1860 | 1824 | 1400 | 4 | 16 | 3x800 | ||||
DTL140/100/2x1250 | 1000 | 912 | 1400 | 4 | 25 | 2x1250 | ||||
DTC140/300/2x1250 | 3000 | 1100 | 1400 | 4.5 | 0-274-0 | 2x1250 | ||||
DTL140/250/4x1250 | 2500 | 1950 | 1400 | 4.5 | 14-0 | 4x1250 | ||||
DTL160/300/4x800 | 3000 | 1900 | 1600 | 4.5 | 0-6.3 | 4x800 | ||||
DTL160/320/3x1400 | 3200 | 2128 | 1600 | 4.2 | 14 | 3x1400 | ||||
DTC180/330/3x1600 | 3300 | 778 | 1800 | 4.5 | 22-26 | 3x1600 | ||||
DTC180/230/4x1600 | 2300 | 1428 | 1800 | 5.5 | 22-26 | 4x1600 | ||||
≤18的提升带式输送机 | ||||||||||
DTL80/30/250 | 300 | 760 | 800 | 2 | 10-19 | 250 | ||||
DTL80/30/2x132 | 300 | 520 | 800 | 2.5 | 16 | 2x132 | ||||
DTL100/50/400 | 500 | 620 | 1000 | 2.8 | 14 | 400 | ||||
DTL100/100/450 | 1000 | 488 | 1000 | 4.3 | 14 | 450 | ||||
DTL120/94/4x500 | 960 | 1247 | 1200 | 4 | 13.78 | 4x500 | ||||
DTL120/120/2x450 | 1200 | 500 | 1200 | 3.5 | 18~0 | 2x450 | ||||
DTL120/180/4x560 | 1800 | 2236 | 1200 | 4 | 0-14 | 4x560 | ||||
DTL120/80/3x710 | 800 | 1540 | 1200 | 3.5 | 425 | 3x710 | ||||
DTL120/120/2x1120s | 1200 | 1500 | 1200 | 4 | 15 | 2x1120 | ||||
DTL120/100/3x560s | 1000 | 1148 | 1200 | 3.5 | 15 | 3x560 | ||||
DTL120/120/3x500 | 1200 | 978 | 1200 | 3.15 | 0-14~6 | 3x500 | ||||
DTL140/130/2x1850s | 1300 | 1790 | 1400 | 5.8 | 16 | 2x1850 | ||||
产品型号 | 运量t/h | 运距m | 带宽mm | 带速m/s | 倾角 | 电机功率kw | ||||
DTL140/200/3x1250 | 2000 | 1445 | 1400 | 4.5 | 16~10-7 | 3x1250 | ||||
DTL140/200/3x1000 | 2000 | 1200 | 1400 | 4.5 | 16 | 3x1000 | ||||
DTL160/330/3x1600 | 3300 | 1780 | 1600 | 4.5 | 8~12 | 3x1600 | ||||
DTL160/310/4x1850 | 3100 | 1790 | 1600 | 6.73 | 16 | 4x1850 | ||||
DTL180/350/4x2240s | 3500 | 1915 | 1800 | 5.6 | 16 | 4x2240 | ||||
近水平固定带式输送机 | ||||||||||
DTL100/100/200 | 1000 | 700 | 1000 | 3.15 | 0~5 | 200 | ||||
DTL100/100/132 | 1000 | 650 | 1000 | 3.15 | 0 | 132 | ||||
DTL120/250/2x1250 | 2500 | 2650 | 1200 | 5 | 2.497 | 2x1250 | ||||
DTL120/225/3x800 | 2250 | 1900 | 1200 | 4 | 0~6.3 | 3x800 | ||||
DTL160/200/2x400 | 1500 | 1650 | 1200 | 4 | 2x400 | |||||
DTL120/175/3x355 | 1750 | 2260 | 1200 | 4 | 00-1 | 3x355 | ||||
DTL140/240/3x710 | 2400 | 2600 | 1400 | 4 | 0 | 3x710 | ||||
DTL140/200/2x1120 | 2000 | 2885 | 1400 | 3.5 | 0-14 | 2x1120 | ||||
DTL140/250/2x450 | 2500 | 1326 | 1400 | 4 | 00-1 | 2x450 | ||||
DTL140/250/3x500 | 2500 | 2850 | 1400 | 4 | -5~5 | 3x500 | ||||
DTL160/340/3x1250 | 3400 | 3968 | 1600 | 4.5 | 3~14 | 3x1250 | ||||
DTL180/350/3x1600 | 3500 | 3720 | 1800 | 4 | 0~1.5 | 3x1600 | ||||
DTL180/350/3x1000 | 3500 | 2600 | 1800 | 4 | 3x1000 | |||||
下运带式输送机 | ||||||||||
DTL100/70/2x160X | 700 | 480 | 1000 | 2.5 | -13 | 2x160 | ||||
DTL100/100/200X | 1000 | 700 | 1000 | 3.15 | -3~-7 | 200 | ||||
DTL100/70/2x160 | 700 | 480 | 1000 | 2.5 | -13 | 2x160 | ||||
DTL120/120/2x200 | 1200 | 445 | 1200 | 3.15 | -13 | 2x200 | ||||
DTL120/150/220X | 1500 | 470 | 1200 | 3.15 | -7 | 220 | ||||
DTL120/150/2x250 | 1500 | 1000 | 1200 | 4 | -4 | 2x250 | ||||
DTL140/250/4x560X | 2500 | 930 | 1400 | 2.5 | -15 | 4x560 | ||||
DTL140/200/3x450X | 2000 | 2000 | 1400 | 3.50 | -10-15 | 3x450 | ||||
DTL140/250/3x355+355 | 2500 | 3270 | 1400 | 4.43 | -1~-7-0 | 3x355+355 | ||||
DTC140/120/3x500 | 1200 | 1000 | 1400 | 3.15 | -22-25 | 3x500 | ||||
DTL160/330/400 | 3300 | 550 | 1600 | 4.00 | 0~-8 | 400 | ||||
